Alicat Whisper  系列流量校準器

確提供NIST可追溯的校準服務和文件，全量程重復性偏差不超過0.2%
快速無須預熱，5ms即有相響應
便捷無須安裝軟件和連接電腦，**數據在屏幕上即可見。
堅固不銹鋼結構，不受碰撞，濕度和位置變化的影響，終身保修。
數據可下載，科通過RS-232數據線連接到電腦下載。
電池耐用，便攜式的離子電池設計，黑白顯示屏校準器使用時長可達18小時，彩色顯示屏校準器使用時間達5小時，電池容量降低至85%時，校準次數可達500次。
  Alicat M 系列流量校準器 快速、準確地檢測流量，緊湊、便捷的設計是在線空氣流量監測，被動采樣套件，空氣采樣罐，采樣泵等的**選擇。此款校準器能測量絕對壓力，質量流量，體積流量，和30種不同流速氣體的溫度。可根據需要選擇便攜式的和基于實驗室使用的。

訂貨信息：

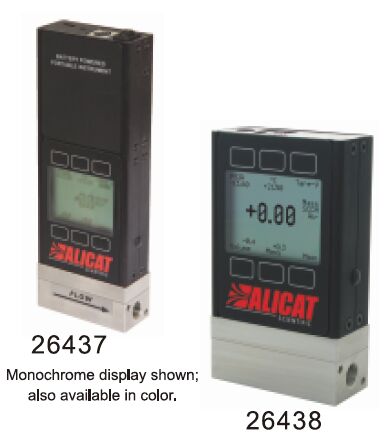

Alicat M 系列流量校準器

Accurate—NIST-traceable and rated at ±0.75% of reading or ±0.1% of full-scale (whichever is greater); calibration documents provided with each unit.

Fast—

Sensitive—built for ambient conditions; ultra-low pressure drop of 0.07 psid.

Convenient—no computer connection or software required and all data is visible on one screen.

Tough—stainless-steel construction; unaffected by bumps, humidity, or changes in orientation; and supported by an Alicat lifetime warranty.*

Downloadable—data can be recorded on a computer via RS-232 connection or micro USB (unit has no onboard data logging).

Long-lasting—portable models with lithium-ion battery offer 8 hours (color) or 18 hours (monochrome) of use between charges; rated for 500 cycles before decline to 85%.**

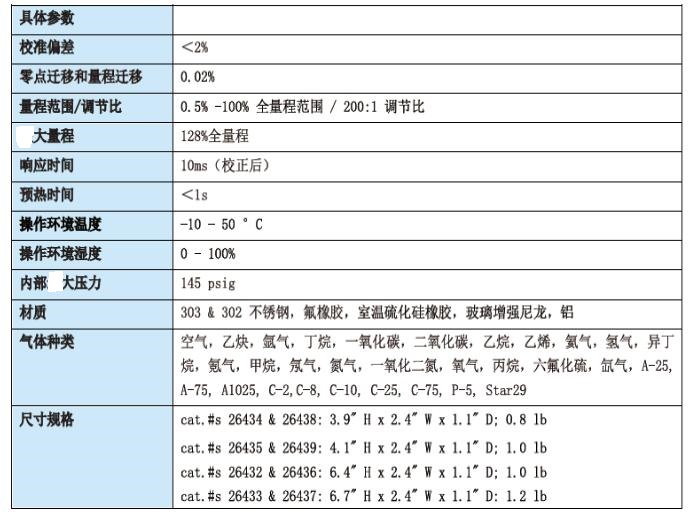

Specifications

Accuracy at Calibration Conditions After Tare: ±0.75% of reading or ±0.1% of full-scale (whichever is greater)

High Accuracy at Calibration Conditions After Tare: ±0.6% of reading or ±0.1% of full-scale (whichever is greater)

Accuracy for Bidirectional Meters at Calibration Conditions After Tare: ±0.75% of reading or ±0.1% of total span (whichever is greater) from positive full-scale to negative full-scale

Repeatability: ± 0.02% full-scale

Temperature Sensitivity:

—Mass flow zero shift: ±0.03% of full-scale per °C from tare temperature

—Mass flow span shift: ±0.01% of reading per °C from 25°C

Pressure Sensitivity:

—Mass flow zero shift: ±0.01% of full-scale per ATM from tare pressure

—Mass flow span shift: ±1% of reading per atmosphere from calibration conditions

Operating Range/Turndown Ratio: 0.01% to 100% full-scale/10,000:1 turndown

Sensor Response Time:

Typical Indication Response Time (indication response time includes user adjustable averaging up to 255 ms): 127 ms (user adjustable)

Warm-Up Time:

Operating Temperature: ?10 to +60 °C

Humidity Range (non-condensing): 0 to 95%

Maximum Internal Pressure (static): 60 psig (damage possible above 10 PSID differential pressure)

Wetted Materials: 302/303 stainless steel, Viton, glass-reinforced polyphenylene sulfide, alumina, glass, gold, silicon, heat-cured epoxy, heat-cured silicone rubber

Certification: CE, NIST

Programmed Gases:

Short Name—Long Name

Air —Air (Clean Dry)

Ar —Argon

CH4 —Methane

CO —Carbon Monoxide

CO2 —Carbon Dioxide

C2H6 —Ethane

H2 —Hydrogen

He —Helium

N2 —Nitrogen

N2O —Nitrous Oxide

Ne —Neon

O2 —Oxygen

C3H8 —Propane

n-C4H10 —Normal Butane

C2H2 —Acetylene

C2H4 —Ethylene (Ethene)

Kr —Krypton

Xe —Xenon

C-25 —25% CO2, 75% Ar

C-10 —10% CO2, 90% Ar

C-8 —8% CO2, 92% Ar

C-2 —2% CO2, 98% Ar

C-75 —75% CO2, 25% Ar

He-25 —25% He, 75% Ar

He-75 —75% He, 25% Ar

A1025 —90% He, 7.5% Ar, 2.5% CO2

Star29 —Stargon CS (90% Ar, 8% CO2, 2% O2)

P-5 —5% CH4, 95% Ar

iButen —Isobutylene

C-15 —15% CO2, 85% Ar

C-20 —20% CO2, 80% Ar

C-50 —50% CO2, 50% Ar

He-50 —50% He, 50% Ar

He-90 —90% He, 10% Ar

Bio5M —5% CH4, 95% CO2

Bio10M —10% CH4, 90% CO2

Bio15M —15% CH4, 85% CO2

Bio20M —20% CH4, 80% CO2

Bio25M —25% CH4, 75% CO2

Bio30M —30% CH4, 70% CO2

Bio35M —35% CH4, 65% CO2

Bio40M —40% CH4, 60% CO2

Bio45M —45% CH4, 55% CO2

Bio50M —50% CH4, 50% CO2

Bio55M —55% CH4, 45% CO2

Bio60M —60% CH4, 40% CO2

Bio65M —65% CH4, 35% CO2

Bio70M —70% CH4, 30% CO2

Bio75M —75% CH4, 25% CO2

Bio80M —80% CH4, 20% CO2

Bio85M —85% CH4, 15% CO2

Bio90M —90% CH4, 10% CO2

Bio95M —95% CH4, 5% CO2

EAN-32 —32% O2, 68% N2

EAN —3 6% O2, 64% N2

EAN-40 —40% O2, 60% N2

HeOx20 —20% O2, 80% He

HeOx21 —21% O2, 79% He

HeOx30 —30% O2, 70% He

HeOx40 —40% O2, 60% He

HeOx50 —50% O2, 50% He

HeOx60 —60% O2, 40% He

HeOx80 —80% O2, 20% He

HeOx99 —99% O2, 1% He

EA-40 —Enriched Air-40% O2

EA-60 —Enriched Air-60% O2

EA-80 —Enriched Air-80% O2

Metab —Metabolic Exhalant (16% O2, 78.04% N2, 5% CO2, 0.96% Ar)

LG-4.5 —4.5% CO2, 13.5% N2, 82% He

LG-6—6% CO2, 14% N2, 80% He

LG-7 —7% CO2, 14% N2, 79% He

LG-9 —9% CO2, 15% N2, 76% He

HeNe-9 —9% Ne, 91% He

LG-9.4 —9.4% CO2, 19.25% N2, 71.35% He

SynG-1 —40% H2, 29% CO, 20% CO2, 11% CH4

SynG-2 —64% H2, 28% CO, 1% CO2, 7% CH4

SynG-3 —70% H2, 4% CO, 25% CO2, 1% CH4

SynG-4 —83% H2, 14% CO, 3% CH4

NatG-1 —93% CH4, 3% C2H6, 1% C3H8, 2% N2, 1% CO2

NatG-2 —95% CH4, 3% C2H6, 1% N2, 1% CO2

NatG-3 —95.2% CH4, 2.5% C2H6, 0.2% C3H8, 0.1% C4H10, 1.3% N2, 0.7% CO2

CoalG —50% H2, 35% CH4, 10% CO, 5% C2H4

Endo —75% H2, 25% N2

HHO —66.67% H2, 33.33% O2

HD-5 —LPG: 96.1% C3H8, 1.5% C2H6, 0.4% C3H6, 1.9% n-C4H10

HD-10 —LPG: 85% C3H8, 10% C3H6, 5% n-C4H10

OCG-89 —89% O2, 7% N2, 4% Ar

OCG-93 —93% O2, 3% N2, 4% Ar

OCG-95 —95% O2, 1% N2, 4% Ar

FG-1 —2.5% O2, 10.8% CO2, 85.7% N2, 1% Ar

FG-2 —2.9% O2, 14% CO2, 82.1% N2, 1% Ar

FG-3 —3.7% O2, 15% CO2, 80.3% N2, 1% Ar

FG-4 —7% O2, 12% CO2, 80% N2, 1% Ar

FG-5 —10% O2, 9.5% CO2, 79.5% N2, 1% Ar

FG-6 —13% O2, 7% CO2, 79% N2, 1% Ar

P-10 —10% CH4 90% Ar

D-2 —Deuterium

*Restek Recommends: Recalibrate your Alicat flow calibrator once every year to maintain lifetime warranty. Prolonged failure to recalibrate your unit may result in increased error. To always get the most accurate measurements, contact Restek Customer Service to send in your flow calibrator for service, recertification, and recalibration (cat.# 26462).

** Note: Handling, removing, or replacing the battery will void the Alicat warranty.
